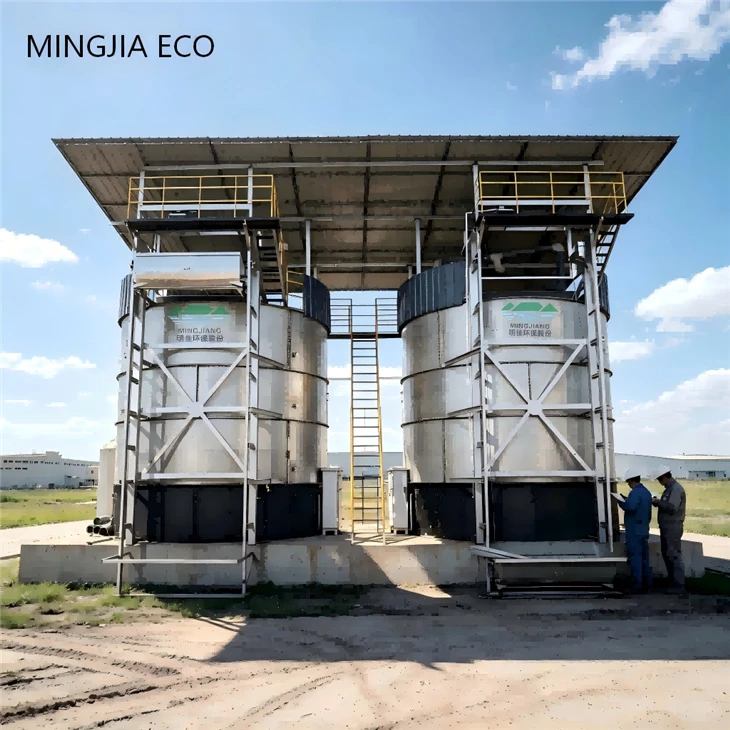

Managing mixed agricultural waste streams on large commercial farms calls for machinery that handles high-moisture inputs without constant operator supervision. Engineering firms and turnkey project developers frequently face strict environmental compliance deadlines when designing waste management systems for multi-species livestock facilities. The Automatic Composting Reactor For Chicken And Pig Manure Co-Processing solves this challenge by providing a continuous, closed-loop vertical aerobic fermentation system. Operating in a high-temperature zone of 65℃ to 80℃, the reactor breaks down blended poultry and swine waste within 6 to 8 days. This rapid transformation turns raw, high-ammonia slurry into dry, pathogen-free organic fertilizer while keeping site operations clean and quiet.

Models

Model	11FFG-55	11FFG-80	11FFG-100	11FFG-120	11FFG-140	11FFG-160	11FFG-220	11FFG-280
Body Volume	55m³	80m³	100m³	120m³	140m³	160m³	220m³	280m³
Power	29.25kW	34.25kW	39.25kW	39.25kW	43.75kW	43.75kW	84.25kW	109.6kW
Body Material	Double-layer Stainless Steel
handling capacity	4-6m³	4-6m³	6-8m³	8-10m³	10-12m³	12-14m³	16-19m³	20-24m³
Tip:The Moisture Content of Fresh Chicken Manure is 65-70%

Working principle model

product-1006-1040

Product Benefits

Fast Installation on Site: Pre-assembled structural modules and simplified utility tie-ins cut civil construction timelines, helping contractors deliver projects on schedule.

Space-Saving Vertical Footprint: Occupying roughly 80 square meters of floor space, the tower layout leaves plenty of room for additional processing machinery or vehicle access lanes.

Corrosion-Resistant Structural Integrity: Built to withstand aggressive chemical environments caused by swine slurry and poultry litter, extending operational life and reducing maintenance service calls.

Low Energy Consumption: Integrated exhaust heat recovery and optimized blowers slash total power consumption by up to 40% compared to conventional aeration methods.

product-3006-1200

FAQ

Q: Can we customize the machine's exterior color and control panel software with our brand identity?

A: Yes. We offer comprehensive OEM/ODM customization, including powder-coating colors, customized logo plates, and personalized software layouts for the PLC touchscreen interface.

Q: How does the system handle high-fiber bedding mixed with cattle and sheep manure?

A: The heavy-duty mixing shaft powered by a solid-forged hydraulic ratchet drive easily breaks down tough straw, wood shavings, and ruminant waste, maintaining even aeration throughout the chamber.

Q: What kind of warranty support do you extend to private-label brand partners?

A: We provide complete factory warranty backing, spare parts packages, and dedicated technical training for your service network to keep end-user support running smoothly.
